We offer a variety of sizes, finishes, and materials that are available from our inventory. If you are unable to find the exact gas spring mounting bracket to fit your application, please contact us. We can help you design a custom bracket for your program. We can quote on both larger and smaller volume items.
Description:

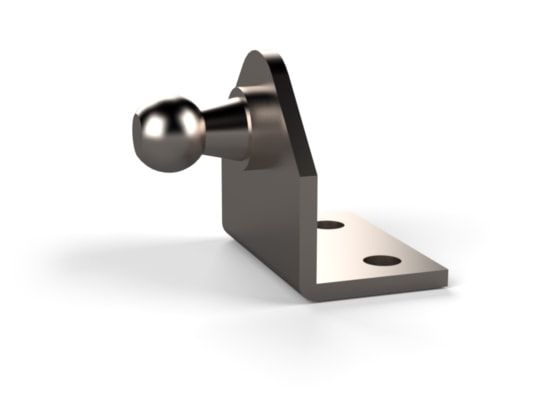

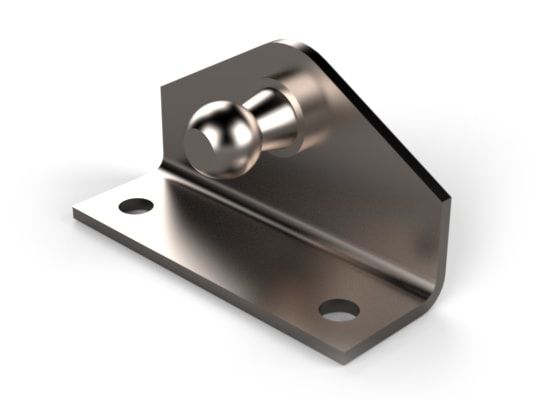

10 mm Ball Stud, L Shaped Bracket, 2 x .200 Mounting Holes
Dimensions:
2.00 x 1.11 x .75 x .074
Description:
10 mm Ball Stud, L Shaped Bracket, 2 x .200 Mounting Holes
Dimensions:
1.25 x 1.15 x .80 x .090
Description:
.315 Hole, L Shaped Bracket, 2 x .200 Mounting Holes
Dimensions:
2.00 x 1.49 x 1.13 x .115
Description:
13 mm Ball Stud, L Shaped Bracket, 3 x .270 Mounting Holes
Dimensions:
3.50 x1.50 x 1.68 x .095
Description:
13 mm Ball Stud, L Shaped Bracket, 3 x .270 Mounting Holes
Dimensions:
3.50 x 1.50 x 1.68 x .095
Description:
10 mm Ball Stud, L Shaped Bracket, 2 x .200 Mounting Holes
Dimensions:
2.00 x 1.11 x .75 x .074
Description:
10 mm Ball Stud, L Shaped Bracket, 3 x .200 Mounting Holes
Dimensions:
2.50 x .79 x .68 x .078
Description:
10 mm Ball Stud, L Shaped Bracket, 2 x .190 Mounting Holes
Dimensions:
2.00 x .88 x .66 x .090
Description:
10 mm Ball Stud, L Shaped Bracket, 3 x .200 Mounting Holes
Dimensions:
2.50 x .79 x .68 x .078
Description:
.222 Hole, L Shaped Bracket, 2 x .190 Mounting Holes
Dimensions:
2.00 x .88 x .66 x .090
Description:

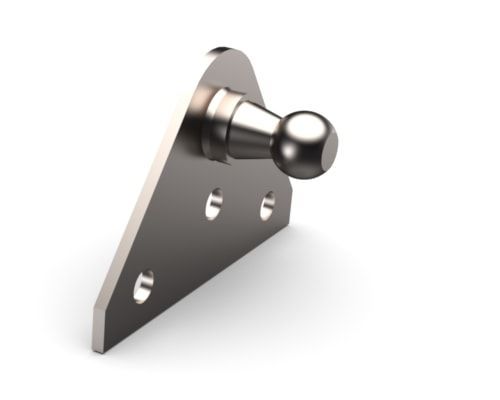

10 mm Ball Stud, Flat Bracket, 3 x .200 Mounting Holes
Dimensions:
2.25 x 1.44 x .078
Description:

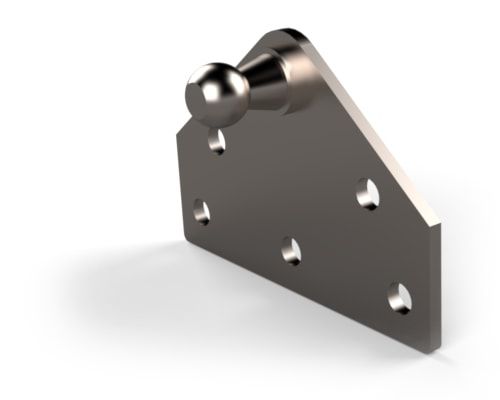

10 mm Ball Stud, Flat Bracket, 5 x .200 Mounting Holes
Dimensions:
2.50 x 1.72 x .090
Description:
10 mm Ball Stud, Flat Bracket, 3 x .200 Mounting Holes
Dimensions:
2.25 x 1.44 x .079
Description:
10 mm Ball Stud, L Shaped Bracket, 2 x .313 Mounting Holes
Dimensions:
2.00 x 1.12 x .76 x .075
Description:
10 mm Ball Stud, 105° L Shaped Bracket, 2 x .250 Mounting Holes
Dimensions:
3.50 x 1.19 x .75 x .137
Description:

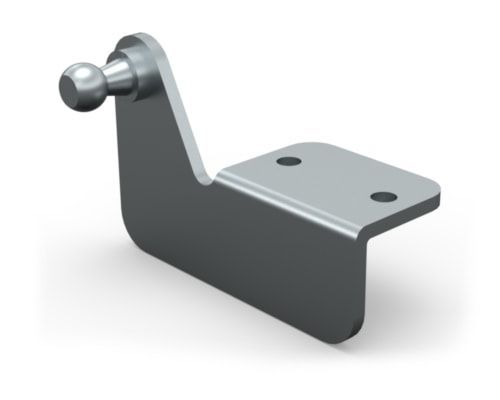

10 mm Ball Stud, Z Shaped Bracket, 2 x .200 Mounting Holes
Dimensions:
2.25 x 1.55 x .38 x .098
Description:

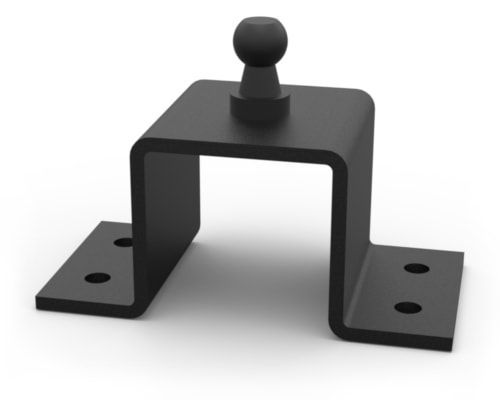

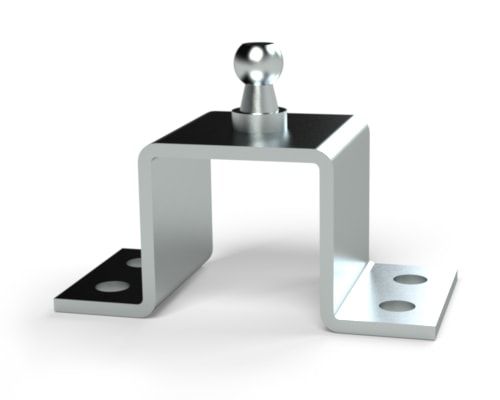

10 mm Ball Stud, n Shaped Bracket, 4 x .200 Mounting Holes
Dimensions:
3.00 x 1.50 x 1.38 x .098
Description:
10 mm Ball Stud, Z Shaped Bracket, 2 x .31 Mounting Holes
Dimensions:
2.25 x 1.55 x .39 x .098
Description:
10 mm Ball Stud, L Shaped Bracket, 3 x .188 Mounting Holes
Dimensions:
1.26 x 1.40 x 1.28 x .098
Description:
10 mm Ball Stud, L Shaped Bracket, 3 x .200 Mounting Holes
Dimensions:
1.20 x 1.50 x 1.25 x .078
Description:

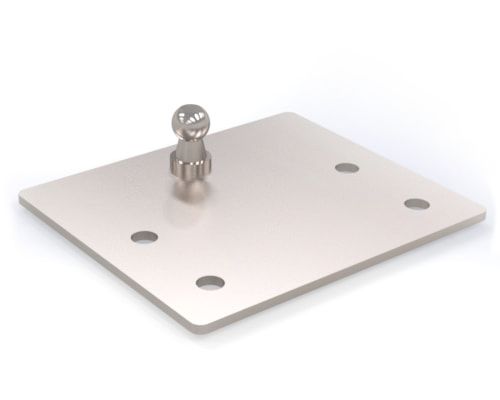

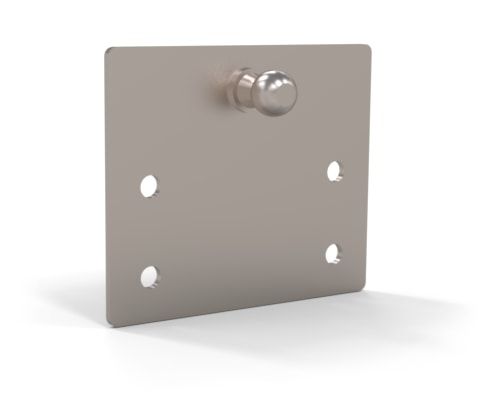

13 mm Ball Stud, Flat Bracket, 4 x .250 Mounting Holes
Dimensions:
3.50 x 3.00 x .095
Description:

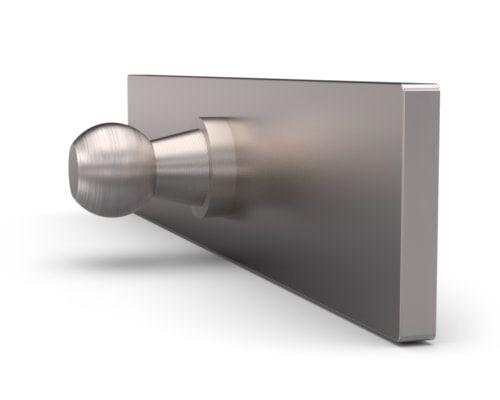

10 mm Ball Stud, Flat Bracket
Dimensions:
3.53 x .75 x .117
Description:
10 mm Ball Stud, Flat Bracket, 4 x .250 Mounting Holes
Dimensions:
3.50 x 3.00 x .095
Description:
.315 Hole, L Shaped Bracket, 4 x .200 Mounting Holes
Dimensions:
1.20 x 1.50 x 1.25 x .078
Description:

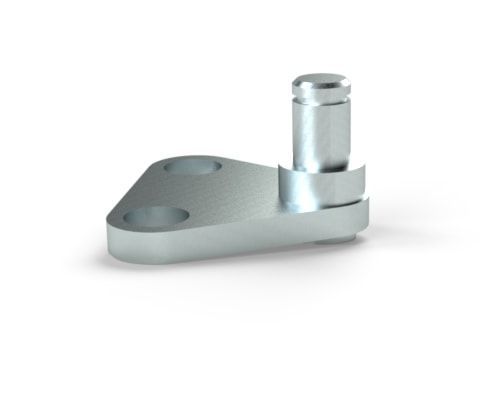

6 mm Hinge Stud, Flat Bracket, 2 x .260 Mounting Holes
Dimensions:
1.10 x 1.10 x .125
Description:
10 mm Ball Stud, L Shaped Bracket, 2 x .200 Mounting Holes
Dimensions:
.83 x 1.50 x 1.25 x .089
Description:

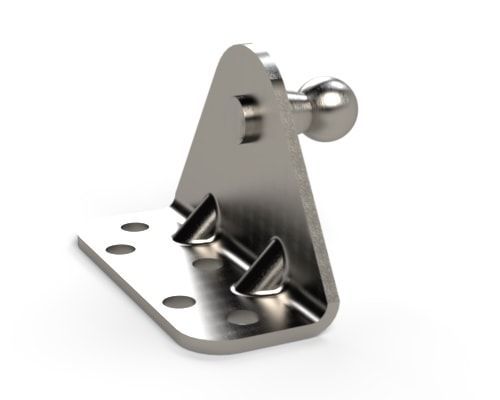

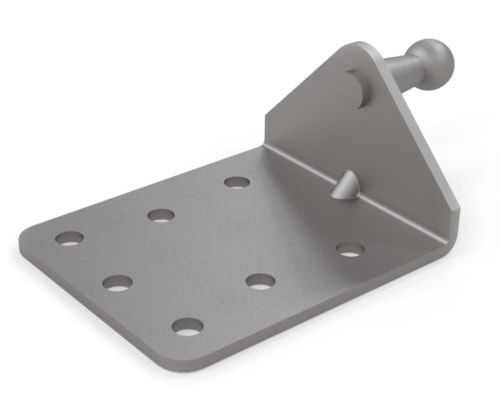

10 mm Ball Stud, L Shaped Bracket, 7 x .200 Mounting Holes
Dimensions:
2.00 x 1.25 x 2.42 x .089
Description:
10 mm Ball Stud, L Shaped Bracket, 3 x .200 Mounting Holes
Dimensions:
2.13 x .95 x 2.56 x 11 GA.
Description:
10 mm Ball Stud, L Shaped Bracket, 3 x .200 Mounting Holes
Dimensions:
1.20 x 1.50 x 1.25 x .090
Description:
10 mm Ball Stud, L Shaped Bracket, 3 x .200 Mounting Holes
Dimensions:
1.20 x 1.50 x 1.25 x .090
Description:
10 mm Ball Stud, L Shaped Bracket, 3 x .200 Mounting Holes
Dimensions:
2.13 x .95 x 2.56 x 11 GA.
Description:
10 mm Ball Stud, L Shaped Bracket, 4 x .200 Mounting Holes
Dimensions:
1.20 x 1.50 x 1.25 x .090
Description:

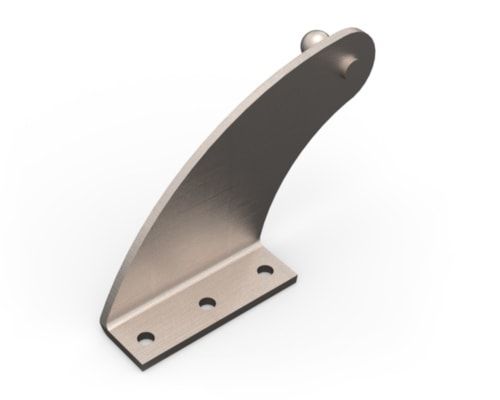

10 mm Ball Stud, L Shaped Bracket, 3 x .281 Mounting Holes
Dimensions:
10.75 x 1.50 x .88 x .105
Description:
10 mm Ball Stud, L Shaped Bracket, 3 x .200 Mounting Holes
Dimensions:
2.00 x 1.23 x 1.44 x 11 GA.
Description:
10 mm Ball Stud, L Shaped Bracket, 3 x .200 Mounting Holes
Dimensions:
2.00 x 1.23 x 1.44 x 11 GA.
Description:
10 mm Ball Stud, Flat Bracket, 3 x .203 Mounting Holes
Dimensions:
1.75 x .69 x .115
Description:

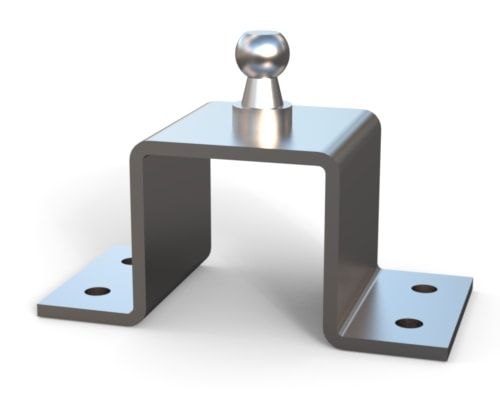

10 mm Ball Stud, n Shaped Bracket, 4 x .280 Mounting Holes
Dimensions:
3.00 x 1.50 x 1.38 x .104
Description:
10 mm Ball Stud, n Shaped Bracket, 4 x .200 Mounting Holes
Dimensions:
3.00 x 1.50 x 1.38 x .098
Description:
10 mm Ball Stud, n Shaped Bracket, 4 x .200 Mounting Holes
Dimensions:
3.00 x 1.50 x 1.38 x .104
Description:
10 mm Ball Stud, 105° L Shaped Bracket, 3 x .200 Mounting Holes
Dimensions:
2.00 x 1.44 x 1.23 x .110
Description:
10 mm Ball Stud, L Shaped Bracket, 5 x .188 Mounting Holes
Dimensions:
2.00 x 1.36 x .83 x .075
Description:
10 mm Ball Stud, L Shaped Bracket, 4 x .250 Mounting Holes
Dimensions:
4.06 x 1.78 x 1.22 x .109
Description:
10 mm Ball Stud, L Shaped Bracket, 4 x .250 Mounting Holes
Dimensions:
4.06 x 1.78 x 1.22 x .109
Description:
10 mm Ball Stud, L Shaped Bracket, 3 x .196 Mounting Holes
Dimensions:
2.50 x .77 x .69 x .075
Description:
10 mm Ball Stud, T Shaped Bracket, 2 x .203 Mounting Holes
Dimensions:
2.75 x 1.92 x 1.09 x .118
Description:
10 mm Ball Stud, L Shaped Bracket, 2 x .203 Mounting Holes
Dimensions:
2.00 x 1.02 x 1.09 x .120
Description:
10 mm Ball Stud, L Shaped Bracket, 2 x 6.5 Mounting Holes
Dimensions:
70 x 22.75 x 30 x 3 (mm)
Description:
10 mm Ball Stud, L Shaped Bracket, 2 x 6.5 Mounting Holes
Dimensions:
70 x 22.75 x 30 x 3 (mm)
Description:
10 mm Ball Stud, L Shaped Bracket, 3 x .203 Mounting Holes
Dimensions:
4.00 x 2.62 x .84 x .118
Description:
10 mm Ball Stud, L Shaped Bracket, 2 x .203 Mounting Holes
Dimensions:
2.00 x 1.11 x .75 x .074
Description:
10 mm Ball Stud, L Shaped Bracket, 2 x .200 Mounting Holes
Dimensions:
2.00 x .89 x .62 x .074
Description:
10 mm Ball Stud, Flat Bracket, 2 x .200 Mounting Holes
Dimensions:
2.00 x 1.50 x 14 GA.
Description:
10 mm Ball Stud, Flat Bracket, 2 x .200 Mounting Holes
Dimensions:
2.00 x 1.58 x .090
Description:
10 mm Ball Stud, L Shaped Bracket, 3 x .200 Mounting Holes
Dimensions:
2.00 x 1.55 x 1.12 x .090
Description:
10 mm Ball Stud, L Shaped Bracket, 2 x .200 Mounting Holes
Dimensions:
1.75 x 1.21 x 1.00 x .113
Description:
10 mm Ball Stud, L Shaped Bracket, 2 x .200 Mounting Holes
Dimensions:
2.00 x 1.50 x 1.20 x .105
Description:
10 mm Ball Stud, L Shaped Bracket, 2 x .200 Mounting Holes
Dimensions:
1.75 x 1.21 x 1.00 x .113
